Predication in Elastic CGRAs

Published at CGRA4HPC @ HPCA 2026, New Orleans, USA, 2026.

Omkar Bhilare, Omar Ragheb, Boma Adhi, Kentaro Sano, Jason Anderson, Tomohiro Ueno (University of Toronto · Fujitsu Consulting Canada · RIKEN-CCS)

Background

Coarse-grained reconfigurable arrays (CGRAs) accelerate compute-intensive kernels using a 2D grid of word-level processing elements (PEs) and a programmable interconnect. Elastic (latency-insensitive) CGRAs follow the dataflow paradigm: compute and communication fire when data arrives, signalled by valid/stop handshaking that conveys data readiness and back-pressure. This makes them well suited to kernels whose latencies are not known at compile time, such as those gated by external memory.

The catch is control flow. A loop with no conditionals maps cleanly to a CGRA, but most real loops are not like that — a classic study found that 56–84% of executed loops contain conditional branches. The standard way to express such control flow on spatial hardware is predication: associating a TRUE/FALSE predicate with an event so that the predicate decides whether (or where) data moves. This work extends the RIKEN elastic CGRA and the open-source CGRA-ME 2.0 CAD flow with predication support. A key subtlety is that, in an elastic fabric, the predicate signals themselves need handshaking so they stay aligned with the events they gate.

Two predication schemes

Consider z = <cond> ? a + b : a - b. There are two ways to realize it:

• Partial predication computes both the sum and the difference, then uses a select to forward the correct result based on the predicate. The hardware is simple — essentially one select multiplexer — but the array does speculative, ultimately unnecessary, work.
• Full predication executes only the chosen path. A branch primitive steers data down one path and invalidates the other, and a merge primitive recombines the live tokens. It avoids wasted work (a likely power, and possibly performance, win) but is harder to map, since branch and merge often need to live in separate switch blocks.

A small set of new elastic primitives supports both schemes: a truncate unit (32-bit condition → 1-bit predicate), 1-bit I/O, a select for partial predication, and a fork-branch plus merge for full predication. Crucially, these are folded into the switch blocks (SBs) by reusing the existing crossbar forks and multiplexers, rather than adding logic inside the PEs — which keeps the area cost low and frees PEs for real computation.

Two architectures

We explore two ways to move predicates around the array.

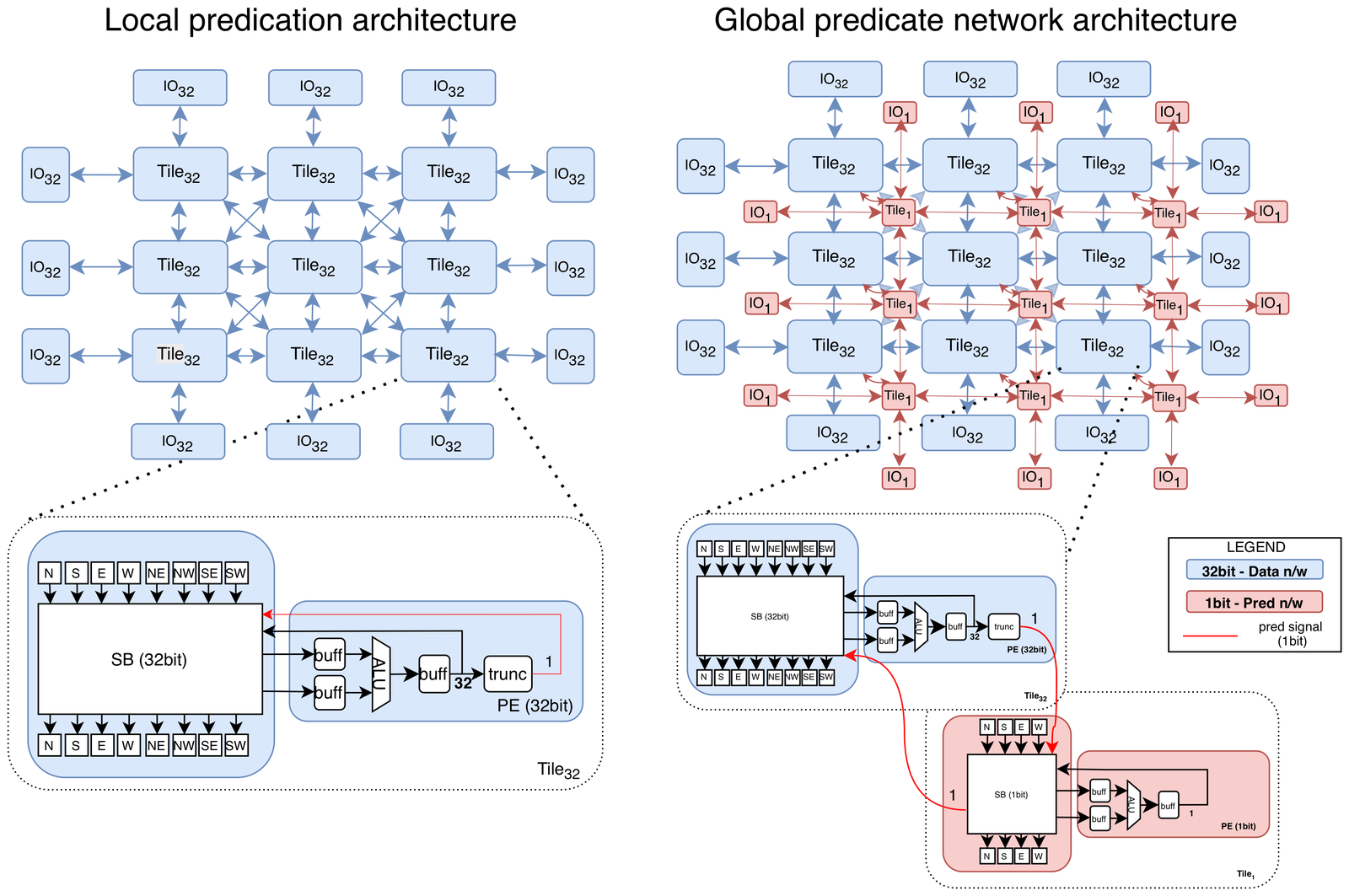

• Local predication. The PE’s ALU performs the compare to produce a 1-bit predicate that is consumed in the same tile. The interconnect stays 32-bit wide, as in the baseline. The cost is a placement constraint: the predicate producer and consumer must be co-located, which creates mapping bottlenecks, especially when one predicate fans out to many consumers.
• Global predicate network. A separate, dedicated 1-bit interconnect routes predicates anywhere on the array, with its own 1-bit switch blocks (orthogonal connections only), a 1-bit ALU for logical ops (AND/OR/XOR), and 1-bit perimeter I/Os. Predicates no longer need to be consumed locally, which relaxes placement and improves resource utilization.

Key contributions

• A predication-enabled extension to an elastic CGRA and the CGRA-ME 2.0 CAD flow, with handshaking-aware predicate signals.
• Switch-block primitives for both partial and full predication that reuse existing crossbar resources for low overhead.
• Two architectures — local predicate and global predicate network — with a thorough area, performance, and mappability comparison across grid sizes.

Results

We mapped a 20-benchmark suite of synthetic control-flow DFGs (10 each for full and partial predication) using CLUMAP in CGRA-ME 2.0, and pushed five grid sizes (2×2 to 10×10) through Synopsys Design Compiler, Cadence Innovus, and PrimeTime on the Nangate 45nm library, over-constrained to a 2 GHz target.

• Mappability strongly favors the global network. For full predication on a 4×4, the local variant maps only 6/10 benchmarks, versus 9/10 (seven at 100%) for the global network. Scaling to 8×8 barely helps local predication, while the global network maps every benchmark. The recurring failure mode for local predication is the producer→consumer co-location constraint, which collapses under predicate fanout.
• Better PE utilization. A 5-node example (two 32-bit compares + three 1-bit logic ops) on a 2×2 over-subscribes the 32-bit PEs locally (unmappable), but the global network offloads the 1-bit logic onto dedicated 1-bit PEs and maps successfully.
• Modest, well-bounded area cost. Thanks to crossbar reuse, local-predicate overhead is ~6–10% over the baseline, and the global predicate network is ~12–20%. Delay is essentially unchanged on average — reusing the crossbar does not lengthen the critical path — with small swings attributable to EDA noise.

The headline trade-off: the global predicate network buys substantially higher mapping success for a modest additional area cost, while local predication is the cheapest option but is constrained in what it can map.

Conclusion

Predication brings conditional execution to elastic CGRAs, broadening them beyond feed-forward streaming kernels to loops with real control flow. We studied partial and full predication on two architectures — one where predicates are produced and consumed locally, and one with an independent 1-bit predicate routing network. The global predicate network achieves markedly higher mappability at a higher, but still modest, silicon cost. As future work, we plan a comparative power analysis of full vs. partial predication across both architectures.
